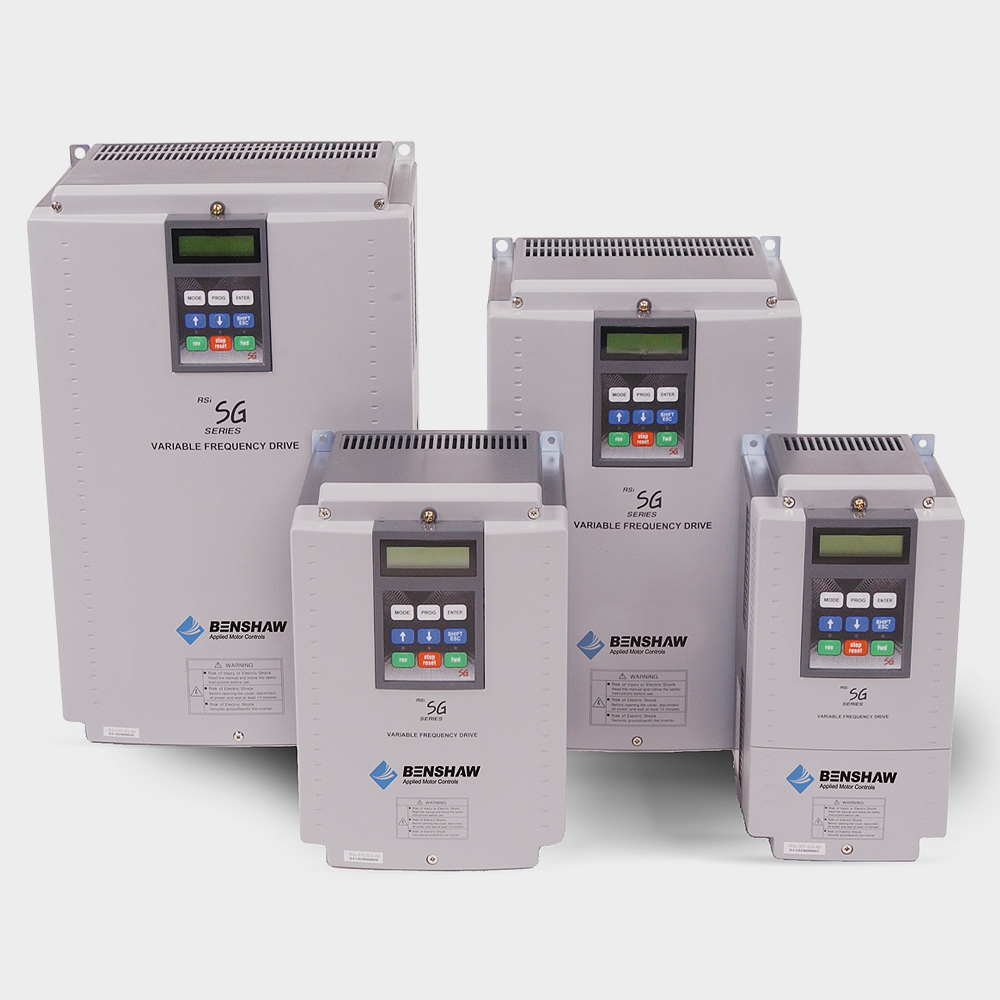

All drives in the SG series feature and intuitive LCD keypad with plain English display (no special lookup codes) making drive setup, operation and fault diagnosis simple and straight forward. The SG series is suitable for basic fan/pump applications or more demanding industrial speed control applications. Simply select the model based on your application requirements – variable torque, standard duty or heavy duty rating.
SG Series General Purpose Variable Frequency Drive (250HP, 600V)
$24,171.00
Extended Part No: VFD-RSI-250-SG-6
Sensorless vector, closed loop control variable frequency dual voltage drive with variable torque ratings.
Variable Torque: 250HP / 242A
Standard Duty: 250HP / 222A
Heavy Duty: 150HP / 177A
Product Documents
Out of stock
