R2LR Series Line/Load Reactors

Line/Load Reactors

Benshaw R2LR Line/Load Reactors provide robust, reliable filtering solutions for added protection of variable frequency drives (VFDs) and motors. Benshaw reactors are designed specifically for VFD applications, are UL listed and made in the USA.

Benshaw R2LR Series Line/Load Reactors are web stocked and available for shipment from our Benshaw Express webstore. They are also available as a built-in solution to engineered Benshaw packaged drives.
UL-CUL-CC-CE-Certification-Logos
Request Info
line-load-reactor-8
Line Reactor
Load Reactor

Line Reactor

Benshaw R2LR Series Line Reactors add impedance, protecting VFDs and downstream motors from power current disturbances (e.g. surges, spikes and transients) and nuisance over-voltage trips. Impedance added on the line side can also help meet IEEE-519 standards:

  • Reduces power source harmonic distortion
  • Improves total (true) power factor
  • Reduces DC bus ripple voltage inside the drive, extending the life of capacitors
  • Reduces voltage when power source voltage is abnormally high
  • Available from 240-600V, up to 800HP
  • 1.5%, 3% and 5% impedance

Load Reactor

Benshaw R2LR Series Load Reactors increase the service life of drives and motors by decreasing terminal voltage and operating temperature. Load reactors can also improve motor efficiency and decrease motor noise:

  • Reduces motor terminal peak voltages due to long leads
  • Increases the efficiency of motors by attenuating high frequency harmonic currents, reducing watt loss
  • Supplements VFD output short circuit protection by limiting short circuit current
  • Reduces output current surges resulting from rapid load changes

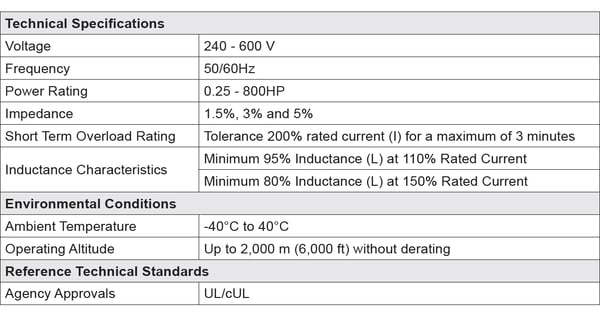

line-load-reactor-specifications

benshaw-two-year-warranty-burst-300x300-1The Benshaw Promise

Benshaw Overload Relays are guaranteed for two full years. Other manufacturers limit their warranties to just one year. But at Benshaw, we believe that, because we build them better, we can guarantee them longer. We call that “the Benshaw Promise.”
