H2 Series Multi-Purpose Industrial Drives

Ratings from 230 - 600V up to 800HP

Setting New Standards

Benshaw H2 Series Multi-Purpose Industrial Drives set the new standard for variable frequency drives technology. H2 Series drives offer V/Hz or vector control (with ratings for normal or heavy duty applications) for industrial drive applications ranging from 0.5 – 800HP. For fan and pumping applications, optional application software is available to meet the unique requirements of the water/wastewater, irrigation and HVAC industries.

Benshaw H2 Series Multi-Purpose Industrial Drives comply with key industry standards (UL/cUL/CE), offer built-in EMC filters (standard in all 480V models), standard RS-485 Modbus/RTU/BACnet/Metasys-N2 communication cards and a full range of programmable features … making them an ideal choice for OEMs, panel builders and end users alike.

UL-CUL-CC-CE-Certification-Logos

Request Info
US Webstore
H2

Highlights

compact size icon-01
Robust Design
Construction of the air flow design minimizes exposure of critical components (IGBT, PCB, etc.) to outside contaminants
energy-icon
Bult-in EMC Filter
Embedded C3 EM filter to meet EN618000-3 standards and provide noise reduction
easy to integrate icon-01
V/F Acceleration and Deceleration Function
Auto torque boost (ATB) enhancing acceleration performance in V/F mode
Flux braking enhancing deceleration performance in V/F mode
reduced costs icon
Sensorless Vector Control
Performs enhanced high torque at low speed with sensorless vector control

Standard Features

Hardware
  • Dual rating – normal and heavy duty
  • 240V: 7.5HP~125HP (ND), 0.5HP~100HP (HD)
  • 480V: 7.5HP~800HP (ND), 0.5HP~600HP (HD)
  • Protected chassis IP20
  • LCD display/keypad
  • EMC filter (480V only, 7.5-40HP and 150-800HP)
  • Internal brake IGBT (240V all, 480V < 40HP)
  • Single phase input (derating required)
  • Plenum rated
Software
  • Quick start menu on power up
  • Control – V/Hz, sensorless vector control, slip compensation
  • Auto tuning
  • Macro selection – Pump, fan, or constant torque
  • Torque limits
  • PID control
  • Regen avoidance
  • Kinetic energy buffering(KEB), ride through
  • Decel brake control
Communications
  • Standard: RS-485 Modbus-RTU, BACnet, Metasys-N2
  • Options: Ethernet/IP, Modbus-TCP, Lonworks
  • WinDRIVE: PC based Software for Commissioning and Monitoring

Programming

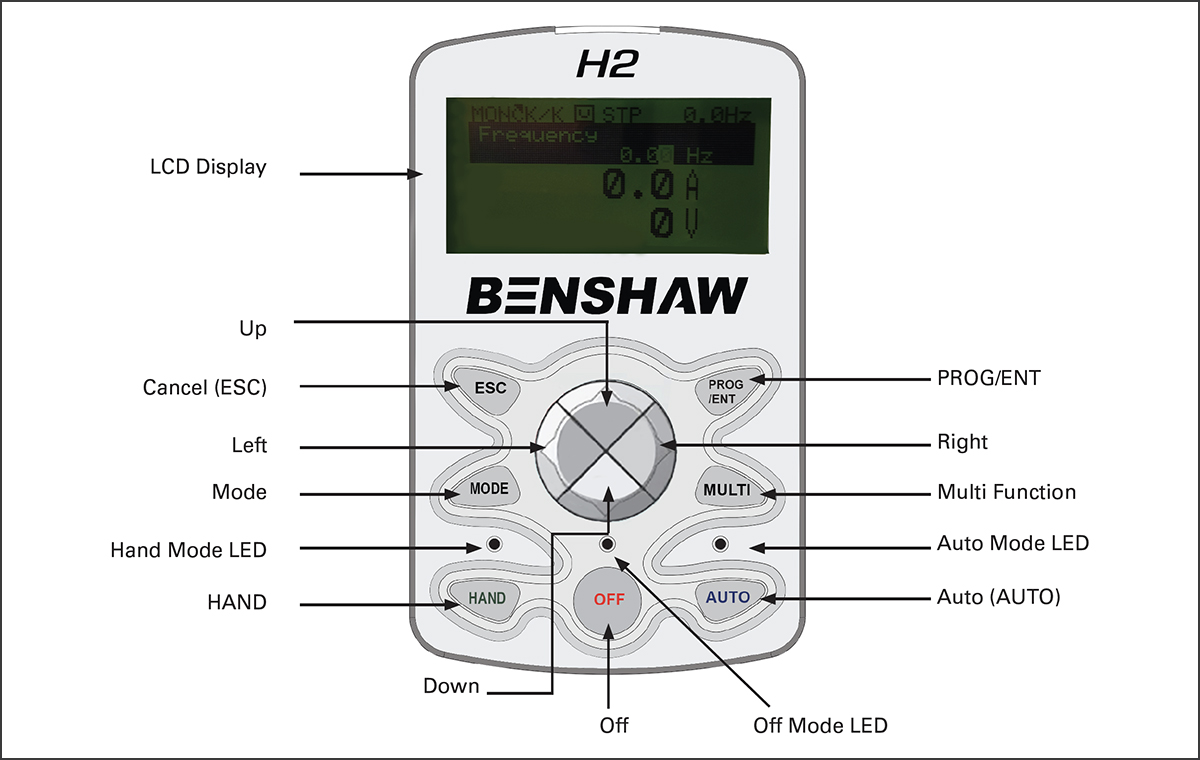

h2-series-keypad-diagram

Product Details

SKU Part Number Description Webstore Link
2124118 VFD-RSI-007-H2-2C H2 Series Multi-Purpose Variable Frequency Drive (7.5HP, 230V) US Webstore
2124093 VFD-RSI-007-H2-4C H2 Series Multi-Purpose Variable Frequency Drive (7.5HP, 460V) US Webstore
2134016 VFD-RSI-007-H2-61 H2 Series Multi-Purpose Variable Frequency Drive (7HP, 575V) US Webstore
2124119 VFD-RSI-010-H2-2C H2 Series Multi-Purpose Variable Frequency Drive (10HP, 230V) US Webstore
2124094 VFD-RSI-010-H2-4C H2 Series Multi-Purpose Variable Frequency Drive (10HP, 460V) US Webstore
2134021 VFD-RSI-010-H2-61 H2 Series Multi-Purpose Variable Frequency Drive (10HP, 575V) US Webstore
2124120 VFD-RSI-015-H2-2C H2 Series Multi-Purpose Variable Frequency Drive (15HP, 230V) US Webstore
2124095 VFD-RSI-015-H2-4C H2 Series Multi-Purpose Variable Frequency Drive (15HP, 460V) US Webstore
2134022 VFD-RSI-015-H2-61 H2 Series Multi-Purpose Variable Frequency Drive (15HP, 575V) US Webstore
2124121 VFD-RSI-020-H2-2C H2 Series Multi-Purpose Variable Frequency Drive (20HP, 230V) US Webstore
2124096 VFD-RSI-020-H2-4C H2 Series Multi-Purpose Variable Frequency Drive (20HP, 460V) US Webstore
2134023 VFD-RSI-020-H2-61 H2 Series Multi-Purpose Variable Frequency Drive (20HP, 575V) US Webstore
2124122 VFD-RSI-025-H2-2C H2 Series Multi-Purpose Variable Frequency Drive (25HP, 230V) US Webstore
2124097 VFD-RSI-025-H2-4C H2 Series Multi-Purpose Variable Frequency Drive (25HP, 460V) US Webstore
2134024 VFD-RSI-025-H2-61 H2 Series Multi-Purpose Variable Frequency Drive (25HP, 575V) US Webstore
2137410 VFD-RSI-030-H2-2C H2 Series Multi-Purpose Variable Frequency Drive (30HP, 230V) US Webstore
2124098 VFD-RSI-030-H2-4C H2 Series Multi-Purpose Variable Frequency Drive (30HP, 460V) US Webstore
2134025 VFD-RSI-030-H2-61 H2 Series Multi-Purpose Variable Frequency Drive (30HP, 575V) US Webstore
2137411 VFD-RSI-040-H2-2C H2 Series Multi-Purpose Variable Frequency Drive (40HP, 230V) US Webstore
2124099 VFD-RSI-040-H2-4C H2 Series Multi-Purpose Variable Frequency Drive (40HP, 460V) US Webstore
2134026 VFD-RSI-040-H2-61 H2 Series Multi-Purpose Variable Frequency Drive (40HP, 575V) US Webstore
2137412 VFD-RSI-050-H2-2C H2 Series Multi-Purpose Variable Frequency Drive (50HP, 230V) US Webstore
2127747 VFD-RSI-050-H2-4C H2 Series Multi-Purpose Variable Frequency Drive (50HP, 460V) US Webstore
2134027 VFD-RSI-050-H2-6C H2 Series Multi-Purpose Variable Frequency Drive (50HP, 575V) US Webstore
2137413 VFD-RSI-060-H2-2C H2 Series Multi-Purpose Variable Frequency Drive (60HP, 230V) US Webstore
2127746 VFD-RSI-060-H2-4C H2 Series Multi-Purpose Variable Frequency Drive (60HP, 460V) US Webstore
2134028 VFD-RSI-060-H2-6C H2 Series Multi-Purpose Variable Frequency Drive (60HP, 575V) US Webstore
2137414 VFD-RSI-075-H2-2C H2 Series Multi-Purpose Variable Frequency Drive (75HP, 230V) US Webstore
2127745 VFD-RSI-075-H2-4C H2 Series Multi-Purpose Variable Frequency Drive (75HP, 460V) US Webstore
2134029 VFD-RSI-075-H2-6C H2 Series Multi-Purpose Variable Frequency Drive (75HP, 575V) US Webstore
2137415 VFD-RSI-100-H2-2C H2 Series Multi-Purpose Variable Frequency Drive (100HP, 230V) US Webstore
2121478 VFD-RSI-100-H2-4C H2 Series Multi-Purpose Variable Frequency Drive (100HP, 460V) US Webstore
2134030 VFD-RSI-100-H2-6C H2 Series Multi-Purpose Variable Frequency Drive (100HP, 575V) US Webstore
2137416 VFD-RSI-125-H2-2C H2 Series Multi-Purpose Variable Frequency Drive (125HP, 230V) US Webstore
2124103 VFD-RSI-125-H2-4C H2 Series Multi-Purpose Variable Frequency Drive (125HP, 460V) US Webstore
2134031 VFD-RSI-125-H2-6C H2 Series Multi-Purpose Variable Frequency Drive (125HP, 575V) US Webstore
2124104 VFD-RSI-150-H2-4C H2 Series Multi-Purpose Variable Frequency Drive (150HP, 460V) US Webstore
2124105 VFD-RSI-200-H2-4C H2 Series Multi-Purpose Variable Frequency Drive (200HP, 460V) US Webstore
2124106 VFD-RSI-250-H2-4C H2 Series Multi-Purpose Variable Frequency Drive (250HP, 460V) US Webstore
2124107 VFD-RSI-300-H2-4C H2 Series Multi-Purpose Variable Frequency Drive (300HP, 460V) US Webstore
2124109 VFD-RSI-400-H2-4C H2 Series Multi-Purpose Variable Frequency Drive (400HP, 460V) US Webstore
2124110 VFD-RSI-500-H2-4C H2 Series Multi-Purpose Variable Frequency Drive (500HP, 460V) US Webstore
2124112 VFD-RSI-650-H2-4C H2 Series Multi-Purpose Variable Frequency Drive (650HP, 460V) US Webstore
2124113 VFD-RSI-800-H2-4C H2 Series Multi-Purpose Variable Frequency Drive (800HP, 460V) US Webstore



Accessories

SKU Part Number Description Webstore Link
2121479 VFD-2M-RE-CABLE-H2 H2 Series Low Voltage Drive 2 Meter Remote Cable & Bezel US Webstore
2121480 VFD-3M-RE-CABLE-H2 H2 Series Low Voltage Drive 3 Meter Remote Cable & Bezel US Webstore
2124059 EN-101040-00 H2 Series NEMA 1 Conduit Box (230V, 20HP / 480V, 20-25HP) US Webstore
2124060 EN-101040-01 H2 Series NEMA 1 Conduit Box (230V, 25HP / 480V, 30-40HP) US Webstore
2124062 EN-101040-02 H2 Series NEMA 1 Conduit Box (480V, 50HP) US Webstore
2124063 EN-101040-03 H2 Series NEMA 1 Conduit Box (480V, 60-75HP) US Webstore
2124064 EN-101040-04 H2 Series NEMA 1 Conduit Box (480V, 100-125HP) US Webstore
2124065 EN-101040-05 H2 Series NEMA 1 Conduit Box (480V, 150-200HP) US Webstore
2124066 EN-101040-06 H2 Series NEMA 1 Conduit Box (480V, 250-300HP) US Webstore
2124067 EN-101040-07 H2 Series NEMA 1 Conduit Box (480V, 350-400HP) US Webstore
2124068 EN-101040-08 H2 Series NEMA 1 Conduit Box (480V, 500-650HP) US Webstore
2124069 EN-101040-09 H2 Series NEMA 1 Conduit Box (480V, 800HP) US Webstore
2126024 EN-101040-10 H2 Series NEMA 1 Conduit Box (240v/480V,1-15HP) US Webstore
2124160 LCD-100003-00 H2 Series Low Voltage Drive Replacement Display /Keypad US Webstore
2124045 PC-100096-00 H2 Series LonWorks Communication Board Kit US Webstore
2124046 PC-100097-00 H2 Series Extended I/O Card US Webstore
2125864 PC-100098-00 H2 Series Ethernet/IP, Modbus-TCP Option, Dual Port US Webstore
2124047 BRKT-100794-00 H2 Series Mounting Flange (230V, 20HP, 480V, 20-25HP) US Webstore
2124048 BRKT-100794-01 H2 Series Mounting Flange (230V, 25HP, 480V,30-40HP) US Webstore
2124049 BRKT-100794-02 H2 Series Mounting Flange (50HP, 480V) US Webstore
2124050 BRKT-100794-03 H2 Series Mounting Flange (60-75HP, 480V) US Webstore
2124051 BRKT-100794-04 H2 Series Mounting Flange (100-125HP, 480V) US Webstore
2124052 BRKT-100794-05 H2 Series Mounting Flange (150-200HP, 480V) US Webstore
2124053 BRKT-100794-06 H2 Series Mounting Flange (250-300HP, 480V) US Webstore
2124054 BRKT-100794-07 H2 Series Mounting Flange (350-400HP, 480V) US Webstore
2124055 BRKT-100794-08 H2 Series Mounting Flange (500-650HP, 480V) US Webstore
2124056 BRKT-100794-09 H2 Series Mounting Flange (800HP, 480V) US Webstore
2032626 CV-100017-00 LCD Cover, Remote Mounting, NEMA 4X, S, SW & H2 Series VFD US Webstore
