H2X/H2E Series Packaged Drives

Prepackaged & Engineered Drive Solutions

Benshaw is recognized as an industry leader for quick shipment of standard (prepackaged) and built-to-order drive solutions. All H2X/H2E Packaged Drives from Benshaw feature an H2 Series drive with your choice of enclosure, disconnect, bypass, pilot devices, control strategy and filters.

Supported by advanced engineering, drafting, materials management, and quality control systems, Benshaw’s “Build to Order” capability, combined with an extensive inventory of control components, protective relays, circuit breakers, contactors, and enclosures, ensures fast delivery of both standard and engineered drive products.

The H2X Series offers standard, preconfigured packages designed for straightforward installation and dependable performance in a wide range of applications. Standard, prepackaged drive configurations (models up to 200HP @ 460V in a NEMA 3R enclosure). The H2E Series provides fully engineered solutions, tailored to meet specific environmental, operational, or integration requirements, while retaining the same proven performance and reliability of the H2 Series platform.

UL-CUL-CC-CE-Certification-Logos

Request Info

Robust Design

Construction of the air flow design minimizes exposure of critical components (IGBT, PCB, etc.) to outside contaminants

Bult-in EMC Filter

Embedded C3 EM filter to meet EN618000-3 standards and provide noise reduction

V/F Acceleration and Deceleration Function

Auto torque boost (ATB) enhancing acceleration performance in V/F mode
Flux braking enhancing deceleration performance in V/F mode

Sensorless Vector Control

Performs enhanced high torque at low speed with sensorless vector control

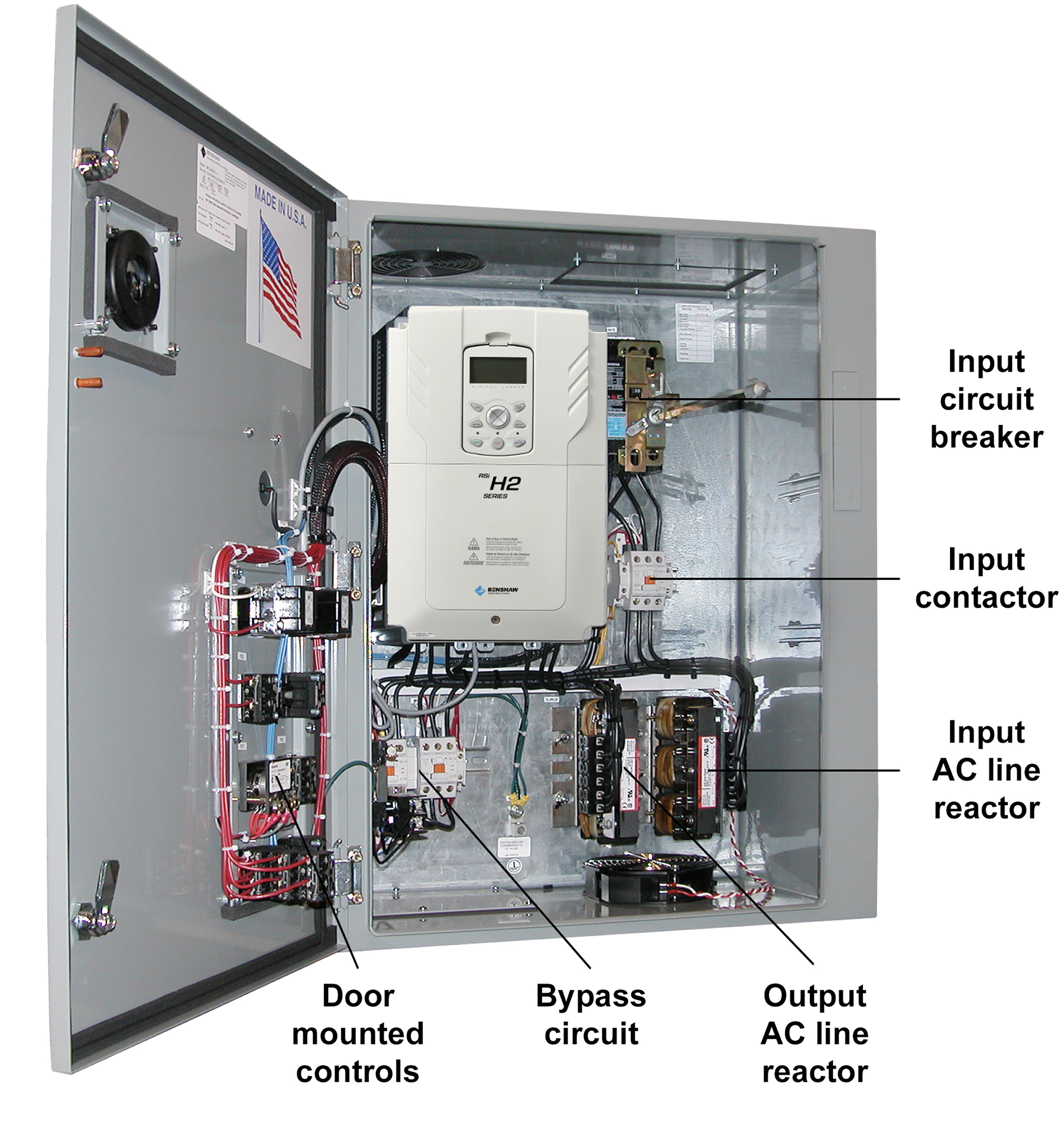

Built-To-Order Drive Packages - Whatever You Specify

Combination drive packages - to meet your requirements

Circuit breaker protection
Non-fused disconnect protection
Fusible disconnect protection
Flange or rotary handle mechanism

Control & Protection - to your specifications

Pilot devices, control power transformers, switches, meters, relays, space heaters, protective devices and more

Bypass packages - to fit your application

Three contactors
Reduced-voltage solid-state starters

Enclosures - to match your environment

Standard designs — NEMA 1, 12, 3R
Custom enclosures
Special enclosures — 4, 4X, air conditioned
Motor control centers

Filters - for your unique application

Line reactors 3% and 5%
Long lead filters
Load reactors
Harmonic filters
18-pulse systems

Standard Features

Hardware

Heavy-duty rated packaged H2 Series drive
NEMA 3R ventilated enclosure
65 KAIC Circuit breaker with rotary operator • Stock models up to 200HP
Door mounted:
- Keypad
- Start/Stop push buttons
- Run indicator light
- Fault indicator light
- Speed potentiometer
- Hand-Off-Auto selector switch

Software

Control Modes
- V/Hz. (Linear, Squared, User defined)- Sensorless Vector (IM or PM) with Auto Tuning (Static or Rotational)
- Slip Compensation
Application Macros Pump- Fan- Constant Torque
Communications (built in)
- BACnet
- Metasys-N2
PID Control (Single Loop, Dual Loop) with:
- Sleep, Sleep Boost and Wake Up
- Broken Pipe Detection
- Under Load Detection
- Select from 40 units of measure
Pump Clean Operation
Time Event Scheduling (24/7 Programmable Operation)
Pump Load Tuning
Energy Saving Operation
Flow Compensation
Backspin Timer
Pre-fill and Soft-fill
Fire mode input
Oil Pump Starter Control (compressor systems)

Ratings up to 460V and 200HP (prepackaged)
