CSXi Series Pump Panel
Ratings from 230 - 575V up to 200HP
Compact Soft Start Pump Panels Made Easy

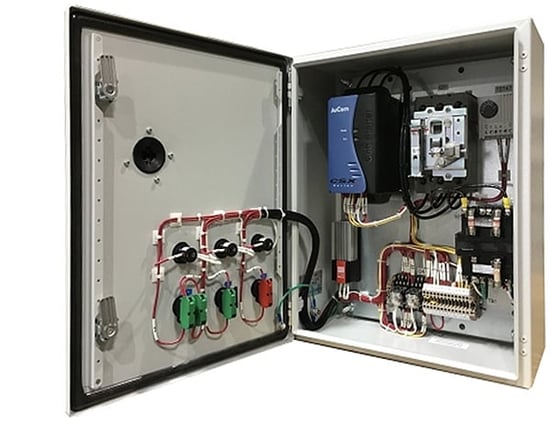

CSXi Series Pump Panels from Benshaw provide the most cost-effective way to add reliable, low voltage soft start capabilities to your system, with all components preinstalled in a NEMA 3R enclosure. Our standard panel configurations make it easy for you to add a soft starter to your system, with most of the wiring already completed for you. Pushbuttons and indicator lights are included, for the ultimate in easy installation.
Flux braking enhancing deceleration performance in V/F mode
Features & Benefits
Standard Features
- NEMA 3R enclosure
- CSXi soft starter with internal bypass
- Circuit breaker with door operator (35 kAIC)
- Control power transformer
- Space heater with thermostat
- Start/Stop Pushbutton, HOA, Power On/Run/Fault lights
Energy Efficiency for Fixed Speed Applications
Designing an energy efficient motor driven system requires consideration of the system as a whole. For fixed speed applications like irrigation, a variable speed drive (VSD) is hugely inefficient, regardless of the efficiency of the motor you are running. Benshaw’s CSXi Pump Panel, by contrast, provides an ideal solution for fixed speed applications, reducing energy consumption by as much as 80%!
Built-In Motor Protection Features
Built-in motor protection features include: Motor overload, phase loss, excess start time, phase sequence, current imbalance, motor thermistor, power circuit fault, supply frequency, instantaneous overcurrent, bypass overload, and communications failure.
