MVNXATL Series Smart ATL Starters

Ratings from 2300 - 15000V up to 4000HP

Next Generation Capabilities

Benshaw Smart Across-The-Line (ATL) Starters provide full-voltage control for three-phase induction motors, with advanced protection, metering, diagnostics, and communication via the Next Generation (NX) controller. Each unit is housed in a free-standing NEMA 12 or NEMA 3R enclosure, with separate medium- and low-voltage compartments for safety, serviceability, and easy access through a door-mounted keypad.

Standard features include a load break/fault make disconnect switch, Class “R” current-limiting fuses, a vacuum motor contactor, and the NX controller with display. For installations with limited space, a compact 20” wide version is also available.

Benshaw-MVRNX-Tagline

Request Info
Smart MV ATL-1

Standard Features

  • NEMA 12 or 3R enclosure
  • Cable entry top
  • Cable exit bottom
  • Disconnect Switch:
    - Load break/fault make
    - 5kV Class “R” rated fuses
    - Current limiting
    - Grounding bar
    - Viewing window
  • Withstand rating: 50kA
  • 60kV BIL rating
  • Vacuum motor starting contactor
  • Genius programmable keypad with Next Gen (NX) controller
  • Start/stop push buttons
  • Featured items via Next Gen (NX) Keypad:
    - Next Gen (NX) overload protection
    - Phase imbalance protection
    - Phase reversal protection
    - Phase loss protection
    - Test function/trip indication
    - Fault indication

Next Generation (NX) Controller Features

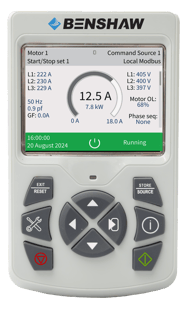

Benshaw S2 Controller HMI               MVRNXX-HMI-Screen-Shots-2048x1240



The “Genius” Medium Voltage “ATL” package includes the Next Gen (NX) controller for additional branch circuit monitoring motor protection, metering, diagnostics and communication. A sampling of these enhanced features includes:

Expandable system

  • HMI with full-color display (panel-mount)
  • DIN rail-mounted control modules
  • Additional DIN rail-mounted modules (can be connected via CAN bus to expand the system and provide additional features)

Built-in connectivity

  • Bluetooth Low Energy (BLE) wireless connection to mobile app
  • Built-in Modbus RTU
  • 6 x digital inputs
  • 4 x relay outputs
  • Analog output with digital offset and span adjustment
  • USB-A socket
  • CAN bus-based expansion to other modules

Easy to understand interface

  • Plain text menus and displays
  • Color-coded status bar
  • Informative on-screen metering
    Real-time clock
  • Programmable metering
  • Resettable run time and power consumption metering
  • Multi-language menus and display
    Passcode protection

Motor control modes

  • Genius ATL - injection test compatible
  • Genius Wye/Delta
  • Power loss ride-through

Commissioning/troubleshooting tools

  • Extensive trip and event logging
  • Versatile trip actions
  • High-speed waveform capture during start, stop and faults
  • Self-test and run simulation mode

Customizable protection

  • Motor overload (thermal model)
  • Undercurrent/Overcurrent
  • Underpower/Overpower
  • Undervoltage/Overvoltage
  • Current imbalance
  • Stalled motor protection (Excess start time /UTS)
  • Line frequency
  • Phase sequence
  • Phase loss (single phasing)
  • Power factor leading/lagging
  • Residual or zero-sequence ground fault protection
  • Backspin/restart timer
  • Starts per hour
  • Time between starts
  • Power outage ride-through

Cybersecurity

  • PIN number protection
  • Digitally signed firmware
  • Secure Bluetooth pairing

Optional expansion modules

  • 8 or 16 RTD inputs, with overload biasing
  • Ethernet/IP
  • CAN bus isolation
  • Profinet
  • Profibus
