A medium voltage drive sits ready to start, but the PLC won't release the run permissive. The interlock status bits show conditions met, yet the handshake sequence stalls at the last step. Your commissioning schedule just lost a shift.
This scenario plays out on commissioning floors more often than most teams expect. PLC handshake failures during medium voltage drive startup rank among the most time-consuming faults to isolate, because they sit at the intersection of control logic, hardware wiring, and communication protocol timing.
This guide walks through seven field-tested steps to identify, isolate, and resolve PLC handshake and interlock failures that delay MV drive commissioning.
What is a PLC handshake in the context of MV drive startup?
A PLC handshake is a two-way exchange of status signals between your programmable logic controller and the MV drive. The PLC sends a start command only after the drive confirms it is ready. Benshaw MV drives support this handshake through hardwired I/O and serial or Ethernet communication buses.
Quick Guide: How to Fix MV Drive PLC Handshake Issues in 7 Steps
- Verify the Drive's Ready Status and Fault Registers: Confirm the drive is reporting a genuine ready state by reading its status word, then record and clear any latched faults.
- Confirm I/O Wiring Between the PLC and the Drive: Check every hardwired interlock signal for correct termination, polarity, and continuity at both ends.
- Validate Communication Protocol Settings: Match baud rate, parity, node address, and timeout parameters between the PLC and the drive controller.
- Check Interlock Logic Sequencing in the PLC Program: Walk through the permissive ladder rung by rung to find conditions that block the run command.
- Test the Handshake Timing and Watchdog Configuration: Measure scan-to-scan timing to confirm the PLC and drive exchange status updates before the watchdog expires.
- Simulate Start Permissives Under Controlled Conditions: Force individual interlock bits in a safe, controlled mode (MV isolated, breaker in test position) to isolate which permissive is holding the sequence. Never force safety-rated interlocks.
- Document Signal Maps and Perform a Loaded Start Test: Record every I/O assignment and protocol register, then execute a start under actual load conditions with Benshaw's commissioning support.
How to Resolve PLC Handshake and Interlock Faults During MV Drive Commissioning
1. Verify the Drive's Ready Status and Fault Registers
Before touching the PLC logic, confirm the drive itself is ready to accept a start command. Read the drive's status word through the HMI or via the communication bus. A drive reporting "ready" at the display may still carry a latched fault in its status register.
On Benshaw MVH2 Series drives, the door-mounted touch screen HMI gives you direct access to fault logs and status registers. Record and clear any latched faults and verify that the drive transitions cleanly from "power on" to "ready" without intermediate alarm states.
Pay attention to faults related to input power quality, cell imbalance, or transformer temperature. These conditions can prevent the drive from asserting its ready output, even when the control section appears healthy.
2. Confirm I/O Wiring Between the PLC and the Drive

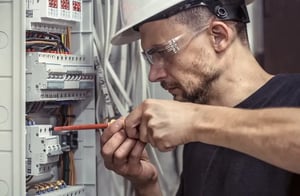

A surprising number of handshake failures trace back to wiring errors, not logic errors. Verify every hardwired digital I/O signal between the PLC output module and the drive's control terminal strip. Check termination points, wire labeling, and continuity, then measure the signal voltage at the drive terminals, not just at the PLC output.
Confirm that the PLC output driving the "start permissive" signal matches the drive's expected input voltage and sink/source configuration. A mismatch here, such as a 24 VDC output wired to a 120 VAC input, or a sourcing output wired to a sourcing input, can show the PLC output as on while the drive never sees the signal.
Thermal cycling during construction can loosen terminal connections that tested fine at room temperature. Re-torque critical control wiring before the first energized test.
3. Validate Communication Protocol Settings
When the PLC communicates with the MV drive over a serial or Ethernet bus, a single mismatched parameter kills the handshake. Check every setting: baud rate, parity, stop bits, node address, and communication timeout value.
Benshaw MVH2 and M2L Series drives support Modbus RTU as standard, with DeviceNet, Profibus, and Ethernet as options. Confirm the PLC's driver module matches the protocol the drive is configured to use. A drive set for Modbus RTU won't respond to Profibus polls, even if the physical wiring is correct.
Verify that the PLC's communication timeout is long enough for the drive's response cycle. MV drive controllers often have longer processing times than low-voltage units, and a timeout set for LV scan rates can trigger false communication loss alarms.
4. Check Interlock Logic Sequencing in the PLC Program
If the drive is ready and the communication link is active, the fault is almost certainly in the PLC's permissive logic. Open the PLC program and walk through the start permissive rung contact by contact. Identify every condition that must be true before the run command energizes.
Common culprits include auxiliary contacts from upstream switchgear that haven't been wired yet, safety relay inputs with inverted logic states, and latch/unlatch sequences that require a manual reset the operator hasn't performed.
In MV drive applications, interlocks often span multiple subsystems: the switchgear disconnect, the medium voltage switchgear breaker position feedback, cooling system run confirmation, and motor space heater de-energize contacts. Any one missing signal holds the entire sequence.
5. Test the Handshake Timing and Watchdog Configuration
Handshake protocols rely on both sides exchanging status updates at a predictable rate. If the PLC scan time is too long or the drive's watchdog timer is too short, the communication appears healthy in snapshot mode but fails during the actual start sequence.
Measure the PLC's actual scan time under loaded conditions, not the configured target. A scan time that balloons from 15 ms to 80 ms when multiple communication modules are active can exceed the drive's watchdog threshold. The result is a communication loss fault at the exact moment you send the start command.
Set the watchdog to at least three times the worst-case update interval you measured. On Ethernet networks that is typically the PLC scan or packet interval; on a multi-drop serial bus it is the full poll cycle across every node. Keep in mind the tradeoff: a longer timeout reduces nuisance trips, but it also delays how quickly the drive reacts to a real communication loss. Confirm the drive's loss-of-communication action (fault, stop, or hold last state) matches your process and safety requirements.
6. Simulate Start Permissives Under Controlled Conditions
When multiple interlocks block the start sequence and you can't determine which one is the holdout, isolate them. With the drive in a safe, non-operational mode and MV isolated, the breaker in test position, and control power on, force individual interlock bits in the PLC to their permissive state one at a time.
Each time you force a bit, check whether the handshake advances to the next step. The interlock that causes the sequence to progress when forced is the one that needs field verification, whether it's a wiring fault, a misconfigured input, or a field device that hasn't been commissioned yet.
Keep a running log of which interlocks pass and which require correction. This isolation method is faster than tracing every signal simultaneously, especially on packaged MV drive systems with dozens of interlock points.
Note: Never force or bypass safety-rated interlocks. Only authorized people should force anything, following the site's bypass/MOC procedure, and every force must be removed and verified afterward.
7. Document Signal Maps and Perform a Loaded Start Test
Once every interlock clears and the handshake completes in simulation, build a complete signal map. Record every digital and analog I/O assignment, communication register address, and interlock source. This documentation becomes the reference for every future troubleshooting event on that drive.
Then perform a loaded start test under actual operating conditions. Motor behavior under load introduces variables that simulation can't replicate: inrush current effects on current transformers, voltage dip impacts on auxiliary relay coils, and mechanical feedback from the driven equipment.
Benshaw's commissioning engineers work alongside your team during loaded start tests, drawing on decades of MV drive application experience to identify issues that only appear under real operating conditions.
What Causes PLC Handshake Failures on Medium Voltage Drives?
PLC handshake failures on MV drives typically result from the interaction of three separate systems: the drive's internal control logic, the PLC's permissive sequencing, and the communication link between them. A fault in any one of these three areas produces the same symptom: the drive refuses to start.
The most frequent root causes fall into a few categories:
- Mismatched communication protocol parameters (baud rate, address, timeout)
- Hardwired interlock signals with incorrect voltage levels or polarity
- PLC logic that references inputs from subsystems not yet commissioned
- Watchdog timers configured for low-voltage scan rates that don't account for MV drive response times
- Latched drive faults that prevent the ready status from asserting
Understanding these categories helps you prioritize your troubleshooting sequence. Start with the drive's own status, move to the physical wiring, check the communication layer, and then work through the PLC logic. This hierarchy follows the signal path from the field device to the control command.
How Do You Prevent PLC Interlock Delays During Future Commissioning Projects?
Prevention starts during the engineering phase, not on the commissioning floor. Build a complete I/O signal list that maps every interlock between the PLC and the MV drive before equipment ships to site. Include expected signal states, voltage levels, and communication register addresses.
Conduct a factory acceptance test (FAT) that includes the PLC, the drive, and every interlock signal. Simulate field device inputs and verify the full start permissive sequence before the equipment leaves the shop. This catches logic errors, wiring mistakes, and protocol mismatches months before they cost you a commissioning shift.
Standardize your watchdog and timeout parameters across the project. When different drives on the same bus use different timeout values, the PLC must manage multiple timing windows. According to a 2024 IEEE PCIC paper on commissioning lessons, inconsistent timing configurations are a recurring contributor to startup delays in multi-drive installations.
How Benshaw Helps You Resolve MV Drive Startup Interlocks
Benshaw designs and manufactures medium voltage drives with native support for the most common industrial communication protocols: Modbus RTU, DeviceNet, Profibus, and Ethernet. This means your PLC communicates directly with the drive controller without third-party protocol converters that add latency and failure points.
Benshaw's advanced field service and commissioning teams have decades of experience troubleshooting PLC-to-drive integration faults in applications ranging from mining crushers to water treatment pump stations. When you commission a Benshaw MVH2 or M2L drive, you get access to application engineers who understand both the motor control side and the automation side of the interlock sequence.
Benshaw also offers retrofit services for facilities upgrading legacy MV starters and drives. If your existing PLC integration created persistent handshake problems with older equipment, a Benshaw engineered retrofit can resolve communication and interlock challenges as part of the upgrade scope. The conversation is worth having before the next commissioning delay forces it.
FAQs About PLC Handshake Issues During MV Drive Startup
Why does my MV drive show ready but not accept a start command?
The drive's "ready" status on the HMI may not match the ready bit in the communication status word. A latched fault, an active warning, or a missing interlock input can prevent the ready output from asserting. Read the full status register to identify the blocking condition.
Can communication protocol mismatches cause intermittent handshake failures?
Yes. Mismatched timeout values or marginal baud rate settings can create intermittent failures that appear only under high network traffic or extended PLC scan times. Benshaw MVH2 drives include diagnostic counters for communication errors, which help you isolate timing-related faults without external network analyzers.
How long should I set the watchdog timer for PLC-to-drive communication?
Start with at least three times the worst-case communication update interval under full load: the PLC scan or packet interval on Ethernet, or the complete poll cycle on a multi-drop serial bus. Measure your own system rather than copying a fixed number, and remember that a longer timeout also means the drive takes longer to react to a real communication loss.
Does Benshaw offer commissioning support for PLC integration with MV drives?
Benshaw's commissioning team includes application engineers who specialize in MV drive and PLC integration. On-site commissioning covers I/O verification, communication protocol setup, interlock logic review, and loaded start testing. This service is typically part of a motor control supply agreement and can also be quoted separately.
